Pressure Loading 31Mpa -42Mpa Hydraulic Pump Test Bench With CE Certificate

Brand Name : YiZhi

Model Number : YST380

Certification : CE / ISO

Place of Origin : Shandong Province of China

MOQ : 1 unit

Price : USD 20000--60000

Payment Terms : T/T

Supply Ability : 1 unit per 50 days

Delivery Time : 50 days

Packaging Details : film

Product Name : Hydraulic pump Test Bench

Driving Power : 75-160KW

Purpose : for repairing hydraulic pumps and motors

rotation Speed : 0-3000 r/min through frequency control

Pressure loading : 31Mpa --42Mpa

Flow : ≦ 500L/min

Display Mode : digital display of speed, flow, pressure, torque. Oil supply: self priming and forced oil supply.

Oil supply : self priming and forced oil supply.

Cooling method : Air-cooled radiator

Ememergency stop Protection : yes

warranty : 1 year

printing of test report : yes

Contact Now

Pressure Loading 31Mpa -42Mpa Hydraulic Pump Test Bench With CE Certificate

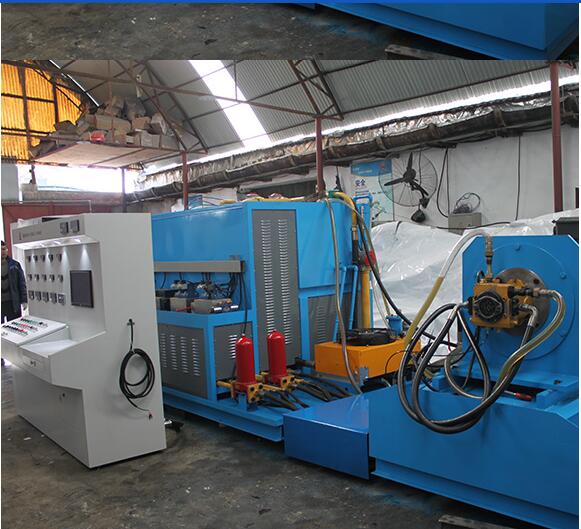

Hydraulic  Pump  Test  Bench







Function configuration and parameters of test bench:



the hydraulic comprehensive test bench can test the following components:



Mainly test: single and double hydraulic pumps; Open and close hydraulic pumps; Low speed hydraulic motor loading test; High speed hydraulic motor (pump working condition test); Ultra high pressure and low flow test.



Driving mode: electric motor output power 160kW; Speed 0-2000r / min



Loading mode: Pump (motor) loading: dual way loading of proportional relief valve, maximum 45MPa



oil supply mode: two way low pressure oil pump supply `oil: 300 L / min (0-3 MPa) or Self-priming oil supply;



High pressure oil supply: 16L / min 0-30mpa



Data display mode: mechanical meter (pressure) digital display instrument (flow, speed, current, voltage) PLC display 19 inch screen



1) Flow and pressure: digital display L / min, MPa;



3) The liquid level is directly displayed by the liquid level meter;



4) If the filter element is blocked and the filter is replaced, the red light will give an alarm;



5) Speed and temperature are displayed by digital display meter.



working medium: isovg46 hydraulic oil



Tank volume: 1000L, actual refueling 900l-950l



main pump platform: 2500mm long × Width 2100mm × Height 2000mm



Motor driving table: 2100mm long × 1550mm wide × 1600mm high



Control counter: 2030mm long × Width 800mm × 1800mm high

















Main configuration



No. Description Mode; Qty
1 Main electric driving Motor 160kw 1
2 Motor 22 kw+75kw 3
3 Control cabinet + frequency converter   1set
4 Direct acting relief valve   2
5 Proportional relief valve   6
6 Check valve   5
7 Directional valve   1
8 Return oil filter 10u 3
9 Suction filter 100u 3
10 Integrated block   4
11 Oil tank and accessory pipeline   1set
12 flow sensor   5sets
13 Digital display instrument   9sets
14 Hydraulic pump 200/200/16 3
15 ball valve   10
16 hydraulic hose   1 set
17 Hydraulic pump motor test bench   1set
18 Main station, auxiliary station   1set
19 Pressure gauge   12
20 Voltmeter and ammeter   2
21 Other accessories   1batch
22 Flowmeter   2
23 Flowmeter   1
24 Oil filter   1
25 Ultra high pressure flowmeter   2

27 Computer   1
28 Siemens PLC   1set
